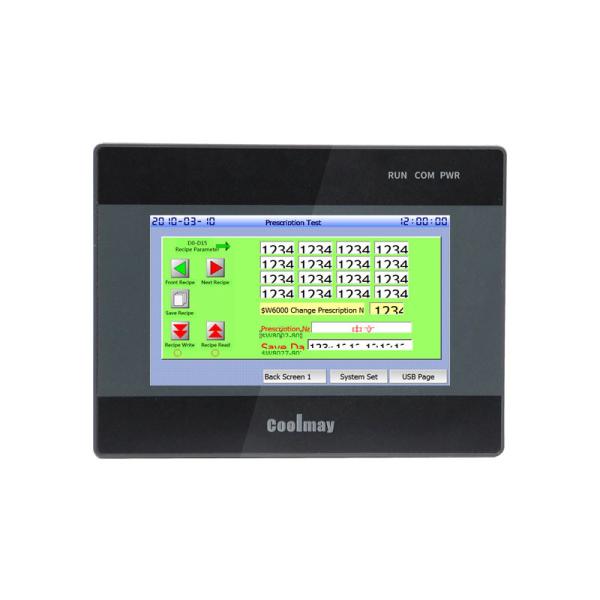

4.3 Inch HMI PLC All In One GX Developer 8.86 And WORKS 2 Software Military Level 32 Bit CPU
Advantage:
◆Upper computer programming software compatible with Works 2/GX Developer8.86 (supports Ladder diagram and SFC language, does not support structured programming/labels).
◆Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing speed.
◆Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.
◆Special encryption, prevent illegal reading thoroughly. 8-bit encryption, 12345678 as password can thoroughly prevent reading of ladder logic program.
◆Clock supported, rechargeable battery adopted.
◆Default with 1 HMI download port, 2 PLC programming ports (RS232 / Type-C), and one USB port.
Parameter:
| Display | Dimension | 134*102*34mm |
| Cutout size | 120*94mm |
| Type | 4.3"TFT |
| Feature | 60K-color resistive touch screen, supports portrait display |
| Memory | RAM | 64MB |
| ROM | NOR Flash 8MB |
| CPU | 32bit CPU 408MHz |
| I/O | DI/DO | Max 12DI/12DO |
| DI/DO level | Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact |
| DO type and load | Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM. |
| Analog I/O (optional) | Max 4AI/2AO |
| AI type (optional) | Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed |
| AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed |
| High-speed function | High-speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
| High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
| Connection | HMI | Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port |
| / |
| PLC | 1 TYPE-C, 1 RS232 (program port) |
| 1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port); 1 WIFI (occupy default RS232 port) |
| Software | HMI | Coolmay mView HMI Programming Software |
| PLC | Compatible with GX Developer 8.86 and WORKS 2 |
HMI program simulation:
mView provides the function of simulating directly on the PC. You can use this function to simulate the actions performed on the HMI after planning HMI. On the one hand, it increases the convenience of finding program errors, and on the other hand, it can save downloading to the time HMI can connect to the controller. The simulation function of mView is divided into two types: [On-Line Run] and [Off-Line Run], as shown in the figure below.
Product Tags:
|
|
408MHz 4.3" HMI PLC All In One GX Developer 8.86 Military 32 Bit CPU Images
|
